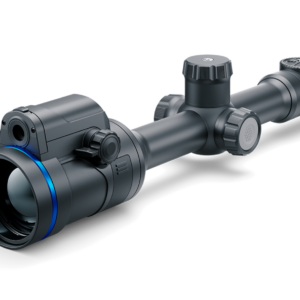

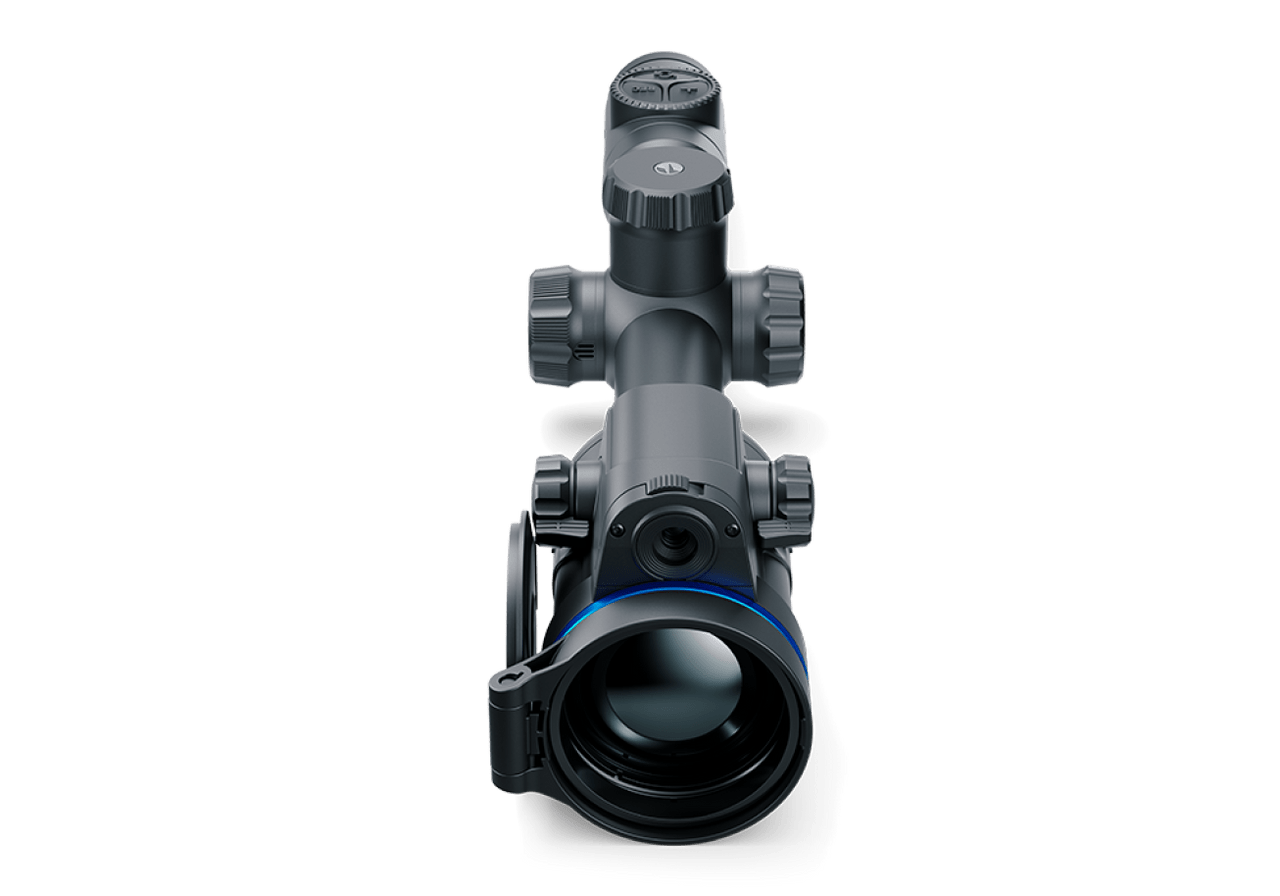

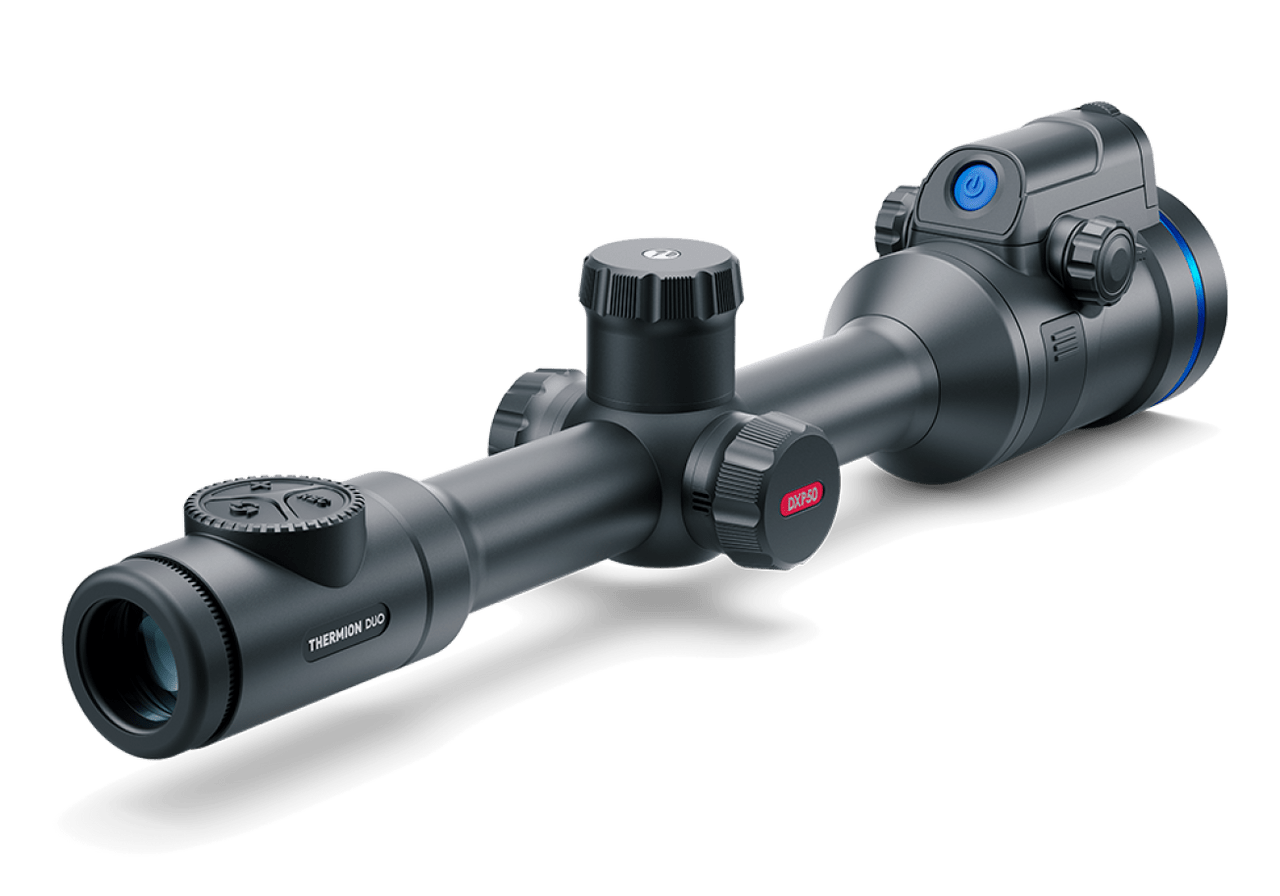

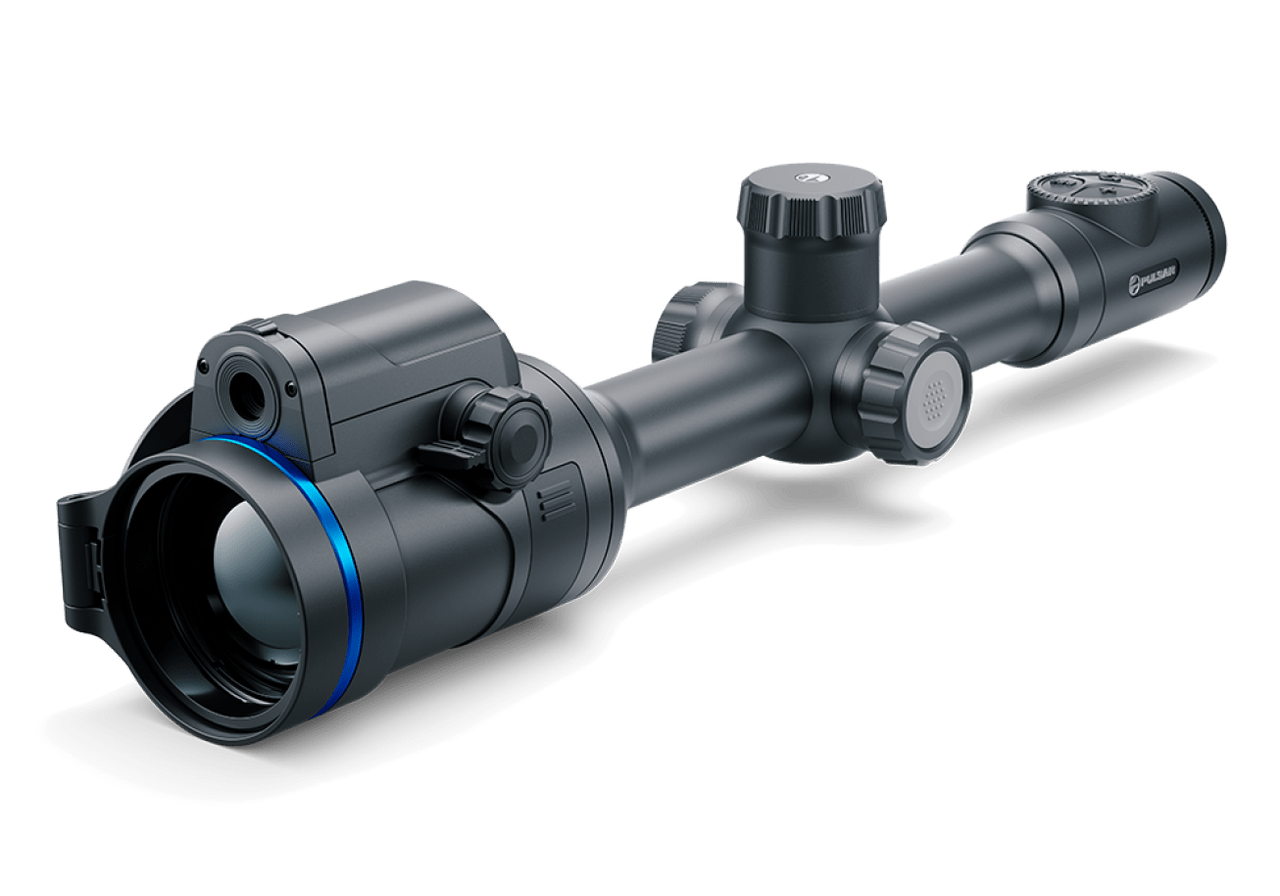

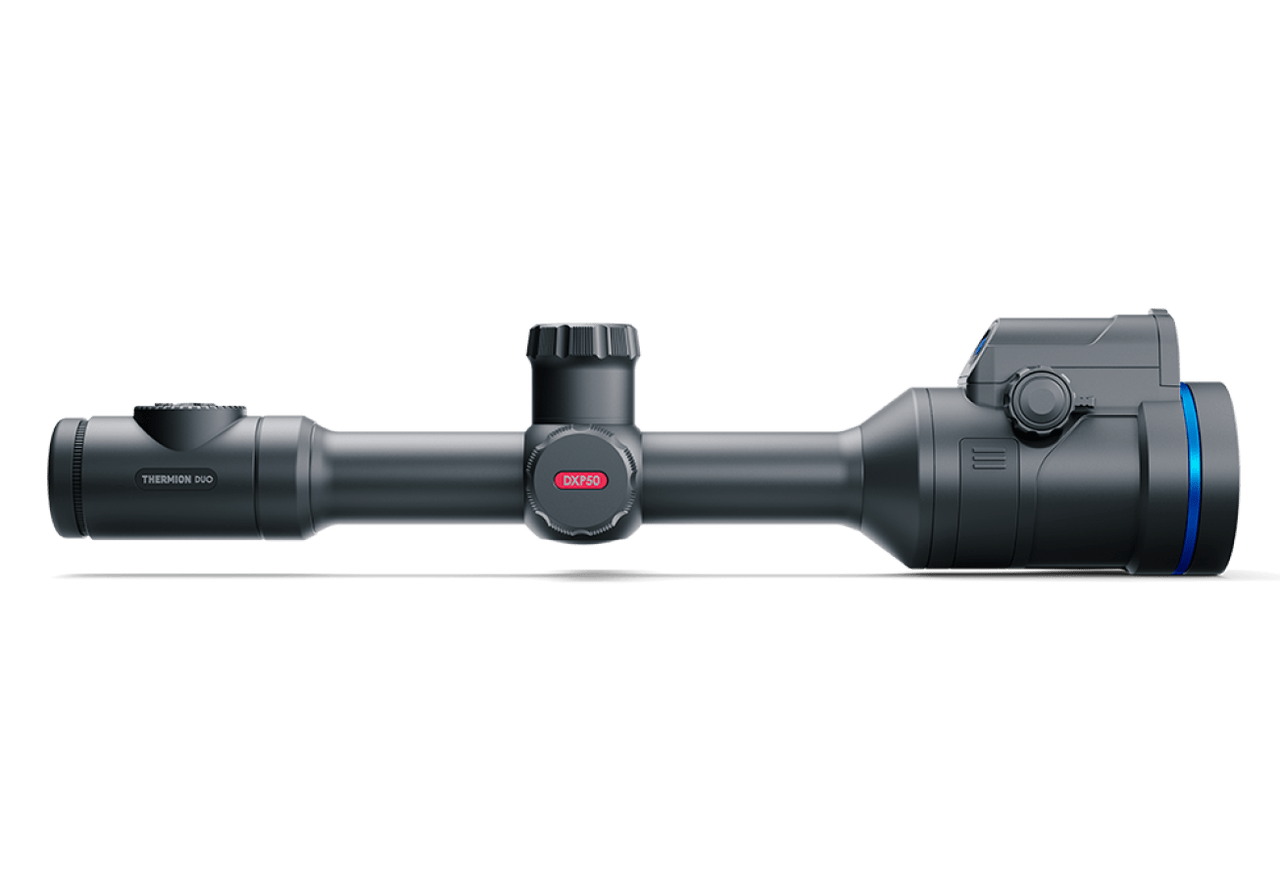

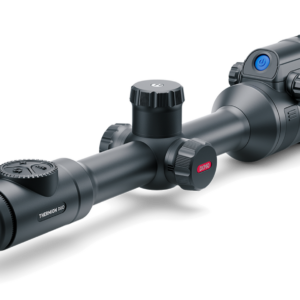

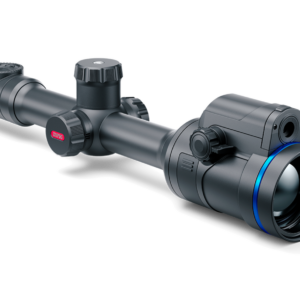

PULSAR THERMION DUO DXP50 MULTISPECTRUM SCOPE 640×480, 25mK, 17um, 1800m
SKU: | TIS571 /pULSAR-76571 |
Out of stock
You've Done Your Homework, Now Call Us
Thermal Imaging and Day Optics in One
The Pulsar Thermion Duo DXP50 multispectral riflescope combines the detection capabilities of thermal imaging with the identification capabilities of full-colour day optics in a single, intuitive device - enhancing the hunting experience and allowing users to gain greater levels of information when observing targets at range. This level of informativity is further enhanced through a field of view that remains the same regardless of which optical channel the rifle is set to, and the removal of any need to refocus the scope as users switch between the two modes.
Powerful Day and Thermal Optics
Featuring a highly sensitive, European-made 640x480, 17µ, <25mK NETD Lynred thermal sensor, combined with a powerful, fast aperture 50mm f1.0 germanium objective lens, the Thermion Duo DXP50 will offer an impressive thermal detection range of up to 1800m and a 12.4° field of view - working effectively and providing crystal clear thermal imagery in adverse conditions such as heavy rain, dense fog, or environments in which thermal contrast is low.
The Thermion Duo DXP50 also features a 3840x2160 4K CMOS sensor which provides crystal clear daytime observation capabilities, with a full-colour HD image and accurate daytime colour rendering.
Advanced image processing algorithms and Pulsar's smoothing filter will ensure this picture always remains as clear as possible and reduces eye strain and fatigue over long periods of observation.
HD AMOLED Display
These incredibly detailed images are presented on a 1024x768 HD AMOLED display, ensuring crisp and accurate thermal imagery by night and clear, high definition observation by day.
Variable Magnification
The Thermion Duo DXP50 offers 2-16x variable magnification with an 8x digital zoom for enhanced observation at greater distances. This digital zoom can be achieved in 2x, 4x, and 8x steps or in smooth, continuous scanning mode.
Picture-in-Picture Mode with Dual Channel Capabilities
Features Picture in Picture mode (PiP), which presents a zoomed in frame in the top 10% of the display, allowing users to magnify objects of interest by x2-x4 and is capable of displaying both thermal and day optics at the same time within the same viewfinder.
Quick and Easy Focusing
Ambidextrous focusing knobs found to either side of the day optics housing have been added to ensure quick and easy focusing whilst remaining comfortable to operate. Fin levers can be found on these focusing knobs, allowing users to quickly and easily make micro adjustments whilst out in the field.
Up to 6 Hours of Power
Using a dual battery system, the Thermion Duo DXP50's two batteries - one internal and one removable and rechargeable - offer effective power for up to 6 hours (depending on temperature), allowing users to continue their hunt well into the night. The replaceable battery is incredibly easy to remove, allowing for fast battery replacement, even in total darkness.
Retains Classic Riflescope Aesthetics
Based on solutions and components found within Pulsar's flagship Thermion 2 XP50 Pro thermal imaging riflescope, the Thermion Duo DXP50 features a seamlessly integrated day optics housing located on top of the riflescope that contains a full-colour 4K optical channel for high definition daytime observation.
This housing remains low-profile, allowing this new multispectral riflescope to retain the familiar aesthetics of a classic daytime riflescope, mounting using 30mm scope rings and ensuring it never looks out of place on a rifle.
Built-In Video and Still Image Recorder
The Thermion Duo DXP50 ' s built-in still image and video recorder allows users to capture their favourite moments, storing them to the device or to Stream Vision 2 and enabling playback and video sharing.
Stream Vision 2
The Thermion Duo DXP50 enables connection of a smartphone or tablet to the Stream Vision 2 app, opening up a wide range of connectivity options, including:
The ability to use a mobile phone as a wireless remote to control and adjust the riflescope's settings. View every change you make through the device on a smartphone or tablet screen in real-time. This feature also allows for remote recording of footage or the capture of still images.
Main |
DXP50 |
Sensor | 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital) |
Objective lens | F50/1.0 (thermal) | F17/4.34 (digital) |
Magnification, x | 2-16 (for both channels) |
Detection range, m | 1800 (thermal detection) |
Sensor |
|
Type | Uncooled (thermal) | Full-color CMOS (digital) |
Resolution, pixels | 640x480 (thermal) | 3840x2160 (digital) |
Pixel pitch, µm | 17 (thermal) |
Frame rate, Hz | 50 |
Optics |
|
Objective lens | F50/1.0 (thermal) | F17/4.34 (digital) |
Magnification, x | 2-16 (for both channels) |
Field of view (HxV), degrees / m @ 100 m |
12.4x9.3 / 21.8x16.4 (for both channels on minimal magnification) |
Eye relief, mm | 50 |
Display |
|
Type | AMOLED HD |
Resolution, pixels | 1024x768 |
Range Performance |
|
Detection range, m | 1800 (thermal detection) |
Recticle |
|
Click value, H/V, mm at 100 m | 21.25 / 21.25 (thermal channel) | 21.26 / 21.26 (digital channel) |
Click range, H/V, mm at 100 m | 4250 / 4250 (thermal channel) | 4252 / 4252 (digital channel) |
Number or preloaded reticles | 10 |
Video Recorder |
|
Video / photo resolution, pixel | 1024x768 |
Video / photo format | .mp4 / .jpg |
Built-in memory, Gb | 16 |
WiFi |
|
Wireless Standard | IEEE 802.11 b/b/n/ac |
Frequency, GHz | 2.4 / 5 |
Environmental Characteristics |
|
Degree of protection, IP code (IEC60529) | IPX7 |
Operating temperature range, °С | -25 – +50 |
Connections and Compatibilities |
|
Max. recoil power on rifled weapon (Eo), Joules |
6000 |
Shock resistance on the smooth-bore rifles, caliber | 12 |
Mounting brackets | Standard 30 mm rings |
Supported Application | Stream Vision 2 |
Weight & Size |
|
Body material | Aluminium |
Dimensions, mm | 420 x 78 x 83.5 |
Weight, kg | 0.96 (batteries included) |
Power Supply |
|
Output voltage, V | 3.0 - 4.2 |
Battery type |
Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal) |
Capacity, mAh | 2000 (external) + 4900 (internal) |
Operating time on battery pack (at t=22°C), h * | 6 |
External power supply, V | 5V, 9V (USB Type-C Power Delivery) |
Trade Data |
|
SKU (Model #) | 76571 |
Pulsar Premium Partner |
Skippersmate.com.au |
Additional information
Weight | 1.0 kg |
---|---|
Warranty Infomation | Pulsar Premium Partner 3 year Australia warranty |
Product UPC/EAN | 4779022925382 |
Buy Safe Online | FREE Express Tracking, Signature & Insurance |
Thermal Sensor | NETD 25mK ensure smallest temp differences |
Detection Range | 1.8m tall object at 1800 m, day & night |
Visability | During rain, fog or cold mornings |
Imaging | High definition in smallest detail – branches, leaves, grass and terrain |
Shockproof | Magnesium alloy housing |
Image Boost Technology | Proprietary software for object identification clarity |
Photo and Video Record | 16 Gb internal memory for many hours |
