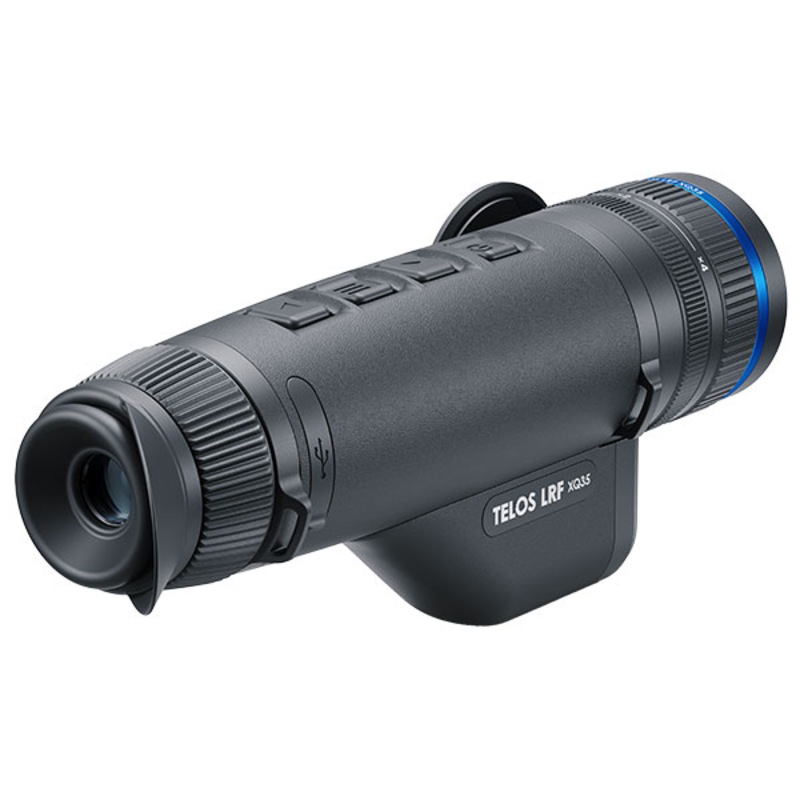

PULSAR TELOS LRF XQ35 THERMAL MONOCULAR RRP $3,398.98 384×288, <25mK, 17um, 1300m
| SKU: | TIC119-1 |
| UPC: | 4779022926013 |
| CONDITION: | NEW |
1 in stock

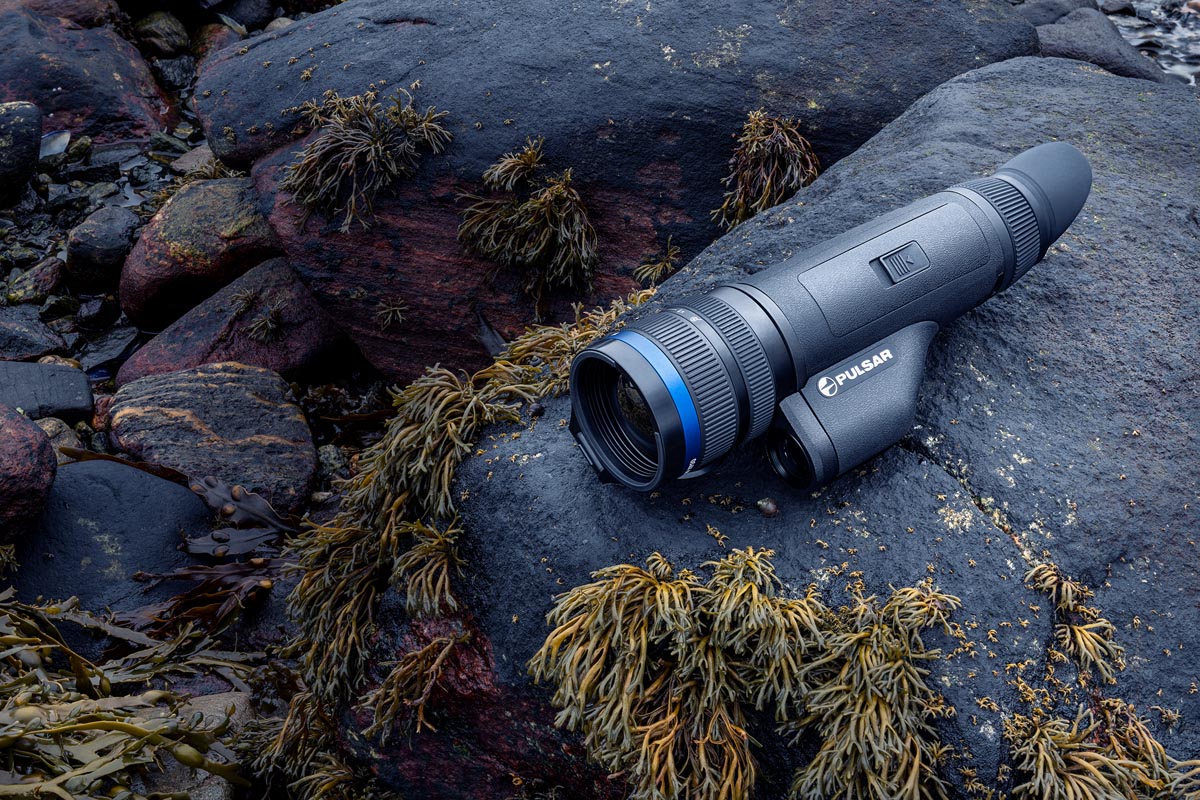

Telos LRF thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.
Unlike night-vision devices based on electron-optical converters, thermal imaging devices do not need an external light source and are resistant to bright light.
Telos LRF thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.
Telos LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and a measurement accuracy of ± 1 m.
| Main | |
| Sensor | 384x288 pix. @ 17 um (NETD <25 mK) |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 - 12 (x4 zoom) |
| Field of view (HxV), degrees / m@100m | 10.7x8 / 18.7x14 |
| Detection range, m | 1300 |
| Sensor | |
| Type | Uncooled |
| Resolution, pixels | 384x288 |
| Pixel pitch, um | 17 |
| NETD, mK | <25 mK |
| Frame rate, Hz | 50 |
| Optics | |
| Objective lens | F35 / 1.0 |
| Magnification, x | 3 - 12 (x4 zoom) |
| Field of view (HxV), degrees / m @ 100 m | 10.7x8 / 18.7x14 |
| Eye relief, mm | 14 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024x768 |
| Range Performance | |
| Detection range, m | 1300 |
| Laser Rangefinder | |
| Safety class for laser equipment | 1 |
| Wavelength, nm | 905 |
| Max. measuring range, m | 1000 |
| Measurement accuracy, m | 1 |
| Video Recorder | |
| Video / photo resolution, pixel | 1024x768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory, GB | 64 |
| Wi-Fi | |
| Wireless Protocol | Wi-Fi |
| Wireless Standard | IEEE 802.11 b/g/n/ac (WPA) |
| Frequency, GHz | 2.4 / 5 |
| Environmental Characteristics | |
| Degree of protection, IP code | IPX7 |
| Operating temperature range, o | -25 - +40 |
| Connections and Compatibilities | |
| Compatible mounts | |
| Mount, type | 1/4" |
| Supported Application | Stream Vision 2 |
| Power Supply | |
| Output voltage, V | 3.0 - 4.2 |
| Battery type | LPS 7i Li-Ion Battery Pack |
| Capacity, mAh | 6400 |
| Operating time on battery pack (at t=22oC), h | 8.5 |
| External power supply, V | 5V, 9V (USB Type-C Power Delivery) |
| Weight & Size | |
| Body material | Rubber armoured reinforced plastic |
| Dimensions, mm | 224 66 87 |
| Weight, kg | 0.48 (w/o battery) / 0.63 (with the LPS7i battery) |
Additional information
| Weight | 2.0 kg |
|---|
