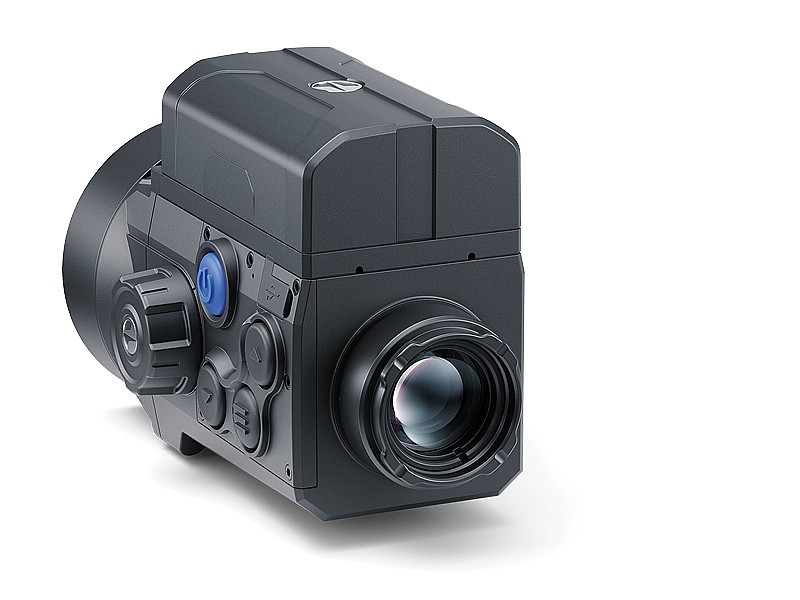

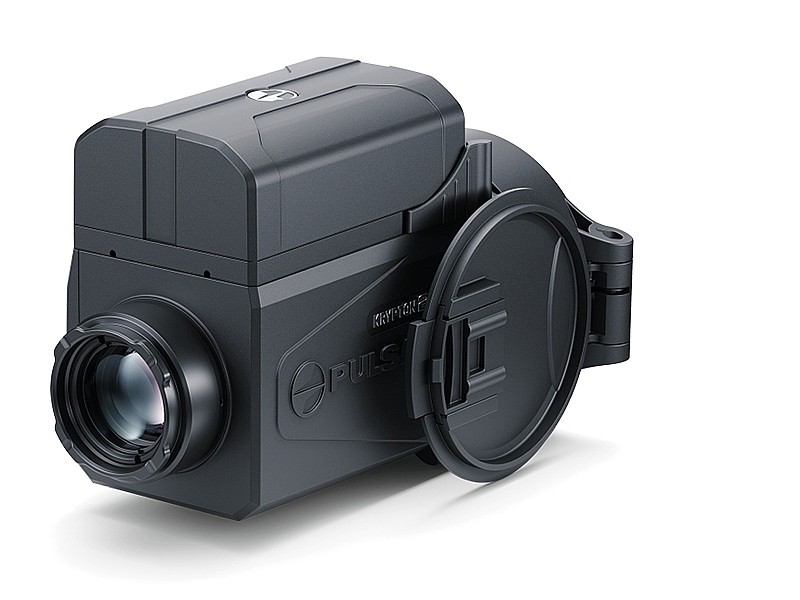

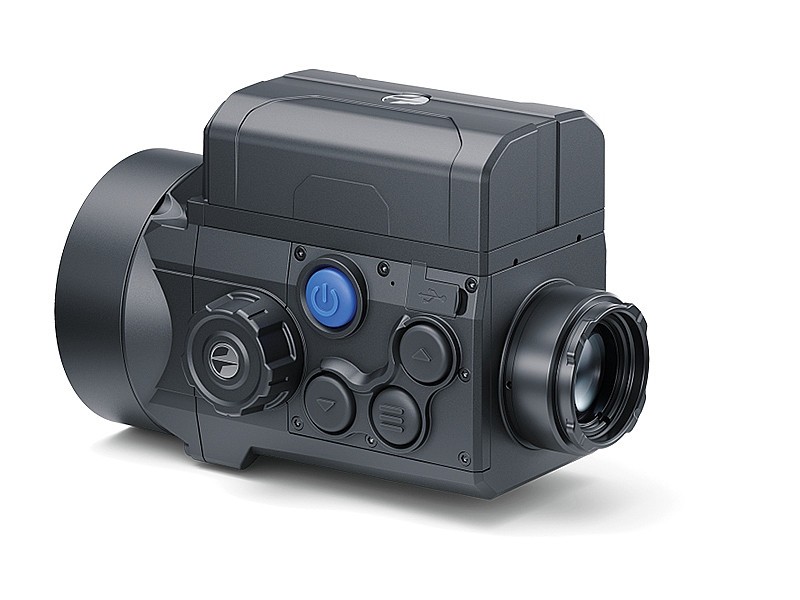

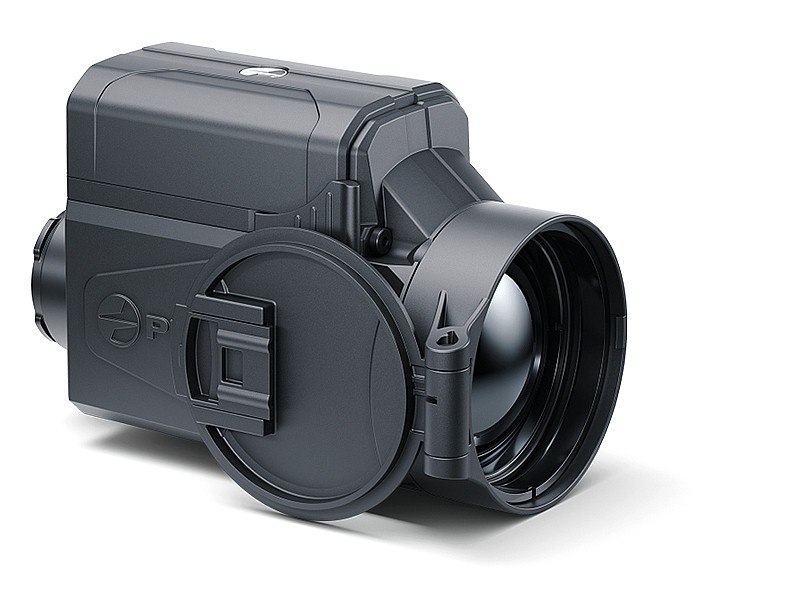

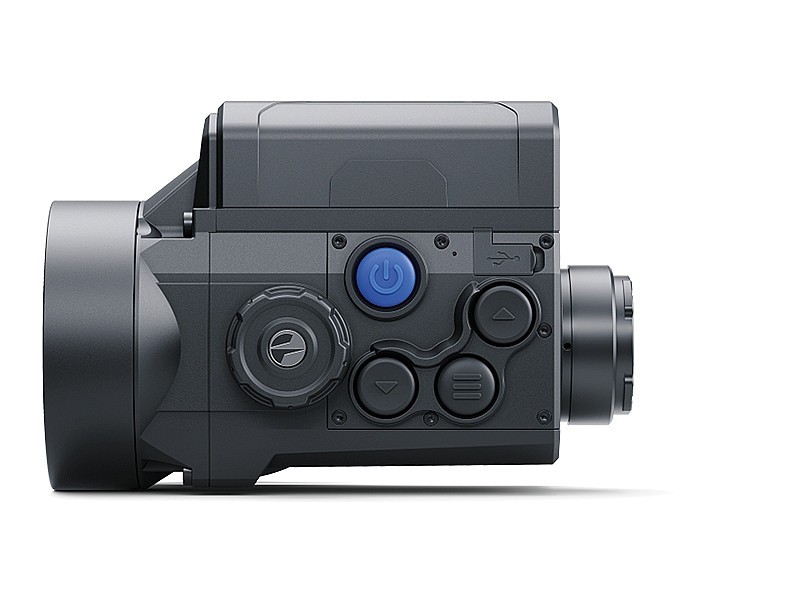

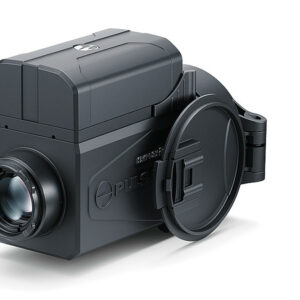

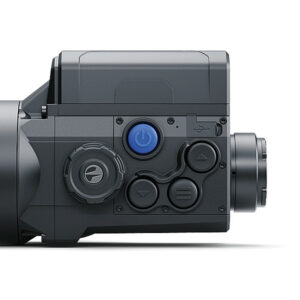

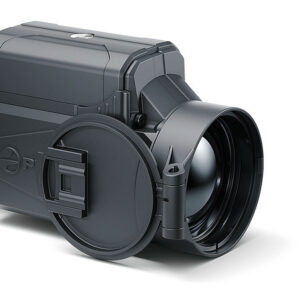

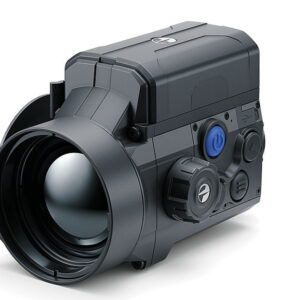

Pulsar Krypton 2 FXG50 Thermal Monocular Sight Attachment



You've Done Your Homework, Now Call Us



The NEW MODEL Krypton2 FXG50 Thermal Imaging Attachment is designed to securely mount to the front of a day optic via a PSP-B Ring Adapter (rings available for 30, 42, 50, 56mm) for fast attachment & unmounting, converting your day scope into a thermal scope.

Alternatively, users can use the Krypton2 FXG50 as a handheld monocular by way of the (not included in price) 5x30 B or 3x20 B monocular attachment.

High Definition Thermal Imaging

The Krypton 2 FXG50's highly sensitive, European-made 640x480, 12 µm, <40 mK NETD thermal sensor ensures a sharp, richly contrasted thermal image for enhanced identification of animals, their extremities, and even the smallest details, i.e. branches, leaves, grass, and terrain.

Extra-Long 2300m Detection Range

A powerful 50mm f1.0 fast aperture germanium objective lens, in combination with this thermal sensor, provides exceptional detection capabilities. A standard 1.8m tall object can be detected at an astonishing range of up to 2300m in complete darkness.

Full-HD multicolour AMOLED display

The new FHD full-colour AMOLED display achieves a high contrast, wide dynamic range whilst remaining energy saving. The fast response time ensures a clear and smooth image when observing objects in motion or in freezing conditions.

Compact & Well-Balanced

When hunting, every extra gram of equipment makes a difference. The Krypton 2 FXG50 is easy and comfortable to use. With its short length, lightweight design and uniform weight distribution, this thermal imaging front attachment has minimal impact on the balance of the "weapon-optics" complex when mounted on the lens of a daytime riflescope, while the attachment controls are easy to reach.

Rugged Magnesium Alloy Housing

A rugged, lightweight magnesium alloy housing offers high structural strength, protecting the Krypton 2 FXG50 from shocks and vibration loads; it is resistant to external mechanical, temperature, and climatic effects. The magnesium alloy housing effectively removes and dissipates heat from the electronic components of the thermal imager, increasing the operational stability of the device.

Up to 11 Hours of Operation

The quick-change rechargeable Li-Ion IPS7 battery pack provides enough power to keep the Krypton 2 FXG50 operational for up to 11 hours. On just one single battery pack the unit can run effectively the whole night through, without the need to be replaced. Its quick-release and wireless design, along with its long operating time are the major highlights of this power system.

Ergonomic Bluetooth Remote Control

The Pulsar BT wireless Bluetooth remote control completely duplicates the buttons found on the side of the Krypton FXG50 and is characterized by excellent ergonomics. The remotes buttons activate the most requested functions, while the device parameters of fine adjustment and menu navigation are provided by rotating or pressing the encoder.
The design, size and positioning of the buttons and encoder are customized for use with both bare hands and gloved hands. It takes minimum movements for a hunter to control the attachment and maintain maximum concentration on the hunting process with the remote control placed in any convenient position on the fore-end or rifle butt.

Adaptable User Interface

A new feature for Pulsar thermal imaging attachments is the graphical user interface adaptation. The device menu and status bar positions are scaled by the user to a comfortable view when changing the magnification of the day riflescope in order to see the current information about the attachment status and operate with the menu in a significant range of magnifications.

Easy to Install

The Krypton FXG50 is mounted on quick-release PSP-B bayonet adaptors using a four-point bayonet. The bayonet coupling is highly reliable and quick and easy to attach. The attachment is removed from one adapter and installed on another with no need for special tools, allowing you to quickly and easily turn various daytime optics in the hunter ' s arsenal into thermal imaging optics. The precise screen positioning mechanism enables the perfect alignment of the thermal or night vision image in the field of view of daylight optics for maximum viewing comfort.

.375 H&H Ready

Feature high shock resistance allowing use with large calibre hunting rifles such as 9.3х64, .30-06, .300, .375. etc., as well as smooth-bore and airsoft weapons.

Point-of-Impact Stability

This thermal imaging front attachment allows shooters to focus on quick target acquisition and shot placement in low-light environments, without stressful, complex adjustments by utilizing a sequential layout of optical and electronic components designed to provide precise sight alignment and ultra-easy adjustability. The attachment's design ensures stability of the point-of-impact when re-focusing the attachment at various distances.

3 Levels of Sensitivity Amplification

Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range observation in diverse weather and temperature conditions. Amplification setting helps to define animal's trophy features and ensures clear rendering of objects and background in the field of view.

Weaver Rail mountable

Use the PSP-V Adapter to mount the Krypton on Weaver rail in front of the day sight. For better pairing with optical riflescopes, the adapter provides two attachment height positions depending on the riflescope lens size and mounting height. The PSP-V is a quick-release adapter - the attachment with the adapter is instantly mounted on the rail and removed from it thanks to the single-point locking lever assembly. The adapter is completed with a silicone cover to protect the riflescope lens from ambient light.

Built-In Photo & Video Recorder

The Krypton 2 FXG50's built-in video recorder, along with generous internal memory, can capture and store hours of video and tens of thousands of photos. One touch of a button is enough to take a photo of an interesting scene or start recording video.

Stream Vision 2

Built-in Wi-Fi connects the device to an Android or iOS smartphone via the Stream Vision 2 mobile application. This opens up a wide range of options including wireless device software updates, real-time image transmission from the device to the smartphone screen, publication on social media of photo and video content captured by the device or transfer to messengers, remote control of digital device functions, and access to the latest news from Pulsar. Moreover, registered users receive 16 GB of cloud storage for photos and videos recorded with the device.

Dual Wi-Fi (2.4 / 5 GHz)

In the Krypton 2 FXG thermal imaging front attachment, the standard smartphone connection frequency range via a 2.4 GHz Wi-Fi channel is complemented with an effective 5 GHz range. The 5 GHz connection offers better bandwidth, a faster data transfer rate, noise immunity and improved connection stability, resulting in more productive and easier operation of the thermal imager with a smartphone.

8 Colour Palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

IPX7 Waterproof

IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The unit is designed to run flawlessly, even after submersion in up to 1 meter of water for up to 30 minutes.

Operation in Extreme Temperatures (-25 to +50°C)

Housing, power unit, optics and electronics of Krypton 2 are designed with regard to applications in wide range of temperatures. Krypton ensures reliable and effective performance in freezing cold up to -25°C.

Main	FXG50 (76659)
Sensor	640x480 pix. @ 12 µm (NETD <40mK)
Objective lens	F50/1.0
Field of view (HxV), degrees / m@100m	8.8x6.6 / 15.4x11.5
Detection range, m	2300
Sensor
Type	uncooled
Resolution, pixels	640x480
Pixel pitch, µm	12
Frame rate, Hz	50
Optics
Objective lens	F50/1.0
Field of view (HxV), degrees / m @ 100 m	8.8 x 6.6 / 15.4x11.5
Recommended magnification of the day sight, x	2 - 6
Display
Type	AMOLED HD
Resolution, pixels	1920x1080
Video Recorder
Video / photo resolution, pixel	1024x768
Video / photo format	.mp4 / .jpg
Built-in memory, Gb	16
WiFi
Wireless Standard	IEEE 802.11 b/g
Frequency, GHz	2.4
Bluetooth
Wireless protocol	BLE.2
Wireless standard	IEEE 802.15.1
Frequency, GHz	2.4
Environmental Characteristics
Degree of protection, IP code (IEC60529)	IPX7
Operating temperature range, °С	-25 - +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules	6000
Shock resistance on the smooth-bore rifles, caliber	12
Remote control	Pulsar BT (included)
Supported Application	Stream Vision 2
Weight & Size
Body material	Magnesium alloy
Dimensions, mm	131x78x84
Weight, kg	0.33 (w/o battery) / 0.46 (with IPS7 battery)
Power Supply
Output voltage, V	3.0 - 4.2
Battery type	Li-Ion Battery Pack АPS7
Capacity, mAh	6400
External power supply, V	5V, 9V (USB Type-C Power Delivery)
Trade Data
SKU (Model #)	76659
